• 2mm Allen Wrench
• 2.5mm Allen Wrench
• 3mm Allen Wrench
• 4mm Allen Wrench
• 5mm Allen Wrench
• 6mm Allen Wrench

• 8mm socket or open end/box end wrench
• 10mm socket or open end/box end wrench
• 15mm socket or open end/box end wrench
• 17mm socket or open end/box end wrench
• #1 Phillips screw driver
• T-10 Torx driver

BATTERY INSTALLATION:

Note: The cycle should be turned OFF and the battery removed when unit is not in use. If the power switch is left on, the battery loses its charge.

1. Locate battery and orient as shown, it is easier if you turn the handlebars left or right 45 degrees.


2. Slide battery into slot on the front of the down tube of the cycle.


3. There is a point where the battery release latch/button provides some resistance. Push the battery past this point. You should hear a click, and this gap should be

BATTERY REMOVAL:

1. Turn the handlebar 45 degrees from straight.


2. Depress the battery release latch/button and slide battery out of slot in the direction shown.

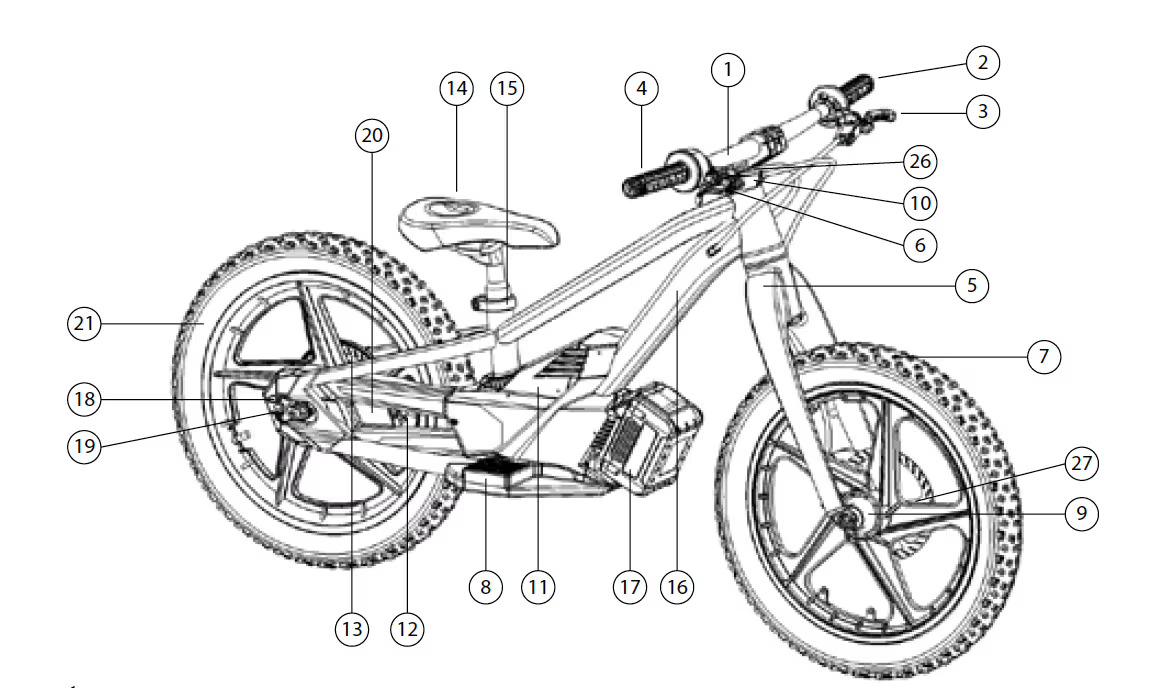

• 1. Handlebar: Aluminum bicycle handlebar


• 2. Handlebar Grip: Left side handlebar grip


• 3. Rear Brake Lever: Adjustable rear brake lever


• 4. Throttle: Twist type throttle with Battery Level indicator lights


• 5. Front fork: Aluminum Rigid or Suspension fork depending on model


• 6. Front Brake Lever: Adjustable front brake lever


• 7. Front wheel: Composite front wheel assembly with pneumatic tire and inner tube


• 8. Foot rest: Plastic injection molded, atraumatic designed footrest


• 9. Front axle nuts: Front axle nut and washer to fasten front wheel to forks


• 10. Headset: Front bicycle style headset steering system


• 11. Side panels: Plastic injection molded side panels to hold and protect electronic motor and controls


• 12. Chain Guard: Plastic injection molded chain guard


• 13. Chain: Bicycle chain


• 14. Seat: Bicycle seat/saddle

• 15. Seat clamp: Bicycle seat clamp to fasten seat position


• 16. Frame: Heat treated aluminum frame


• 17. Battery: 36Vnom/40Vmax battery pack


• 18. Rear Axle Nuts: Rear axle nut and washer to fasten rear wheel to frame


• 19. Chain Tensioner: Bicycle chain tensioner to set chain tension and wheel position


• 20. Rear Disc: Rear bicycle disc brake assembly


• 21. Rear Wheel: Composite rear wheel with pneumatic tire and inner tube

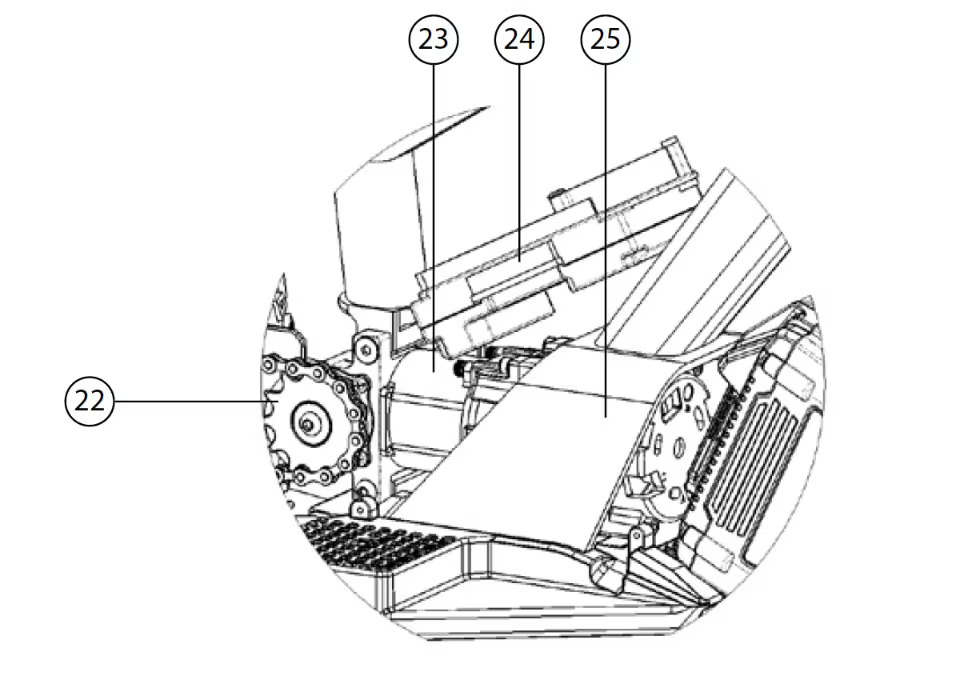

• 22. Drive sprocket: Proprietary steel drive sprocket


• 23. Drive motor: 36V electric motor


• 24. Electric Speed Controller (ESC): 36V, Electric Speed Controller


• 25. Motor Cage: Frame component housing motor


• 26. Stem: Aluminum bicycle stem, attaching the front fork to the handlebar


• 27. Front Disc Brake Assembly; Front bicycle disc brake assembly

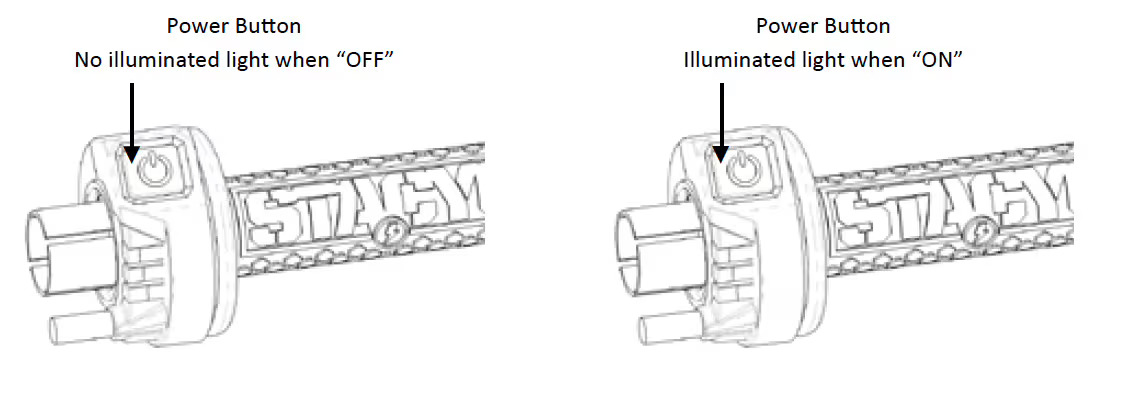

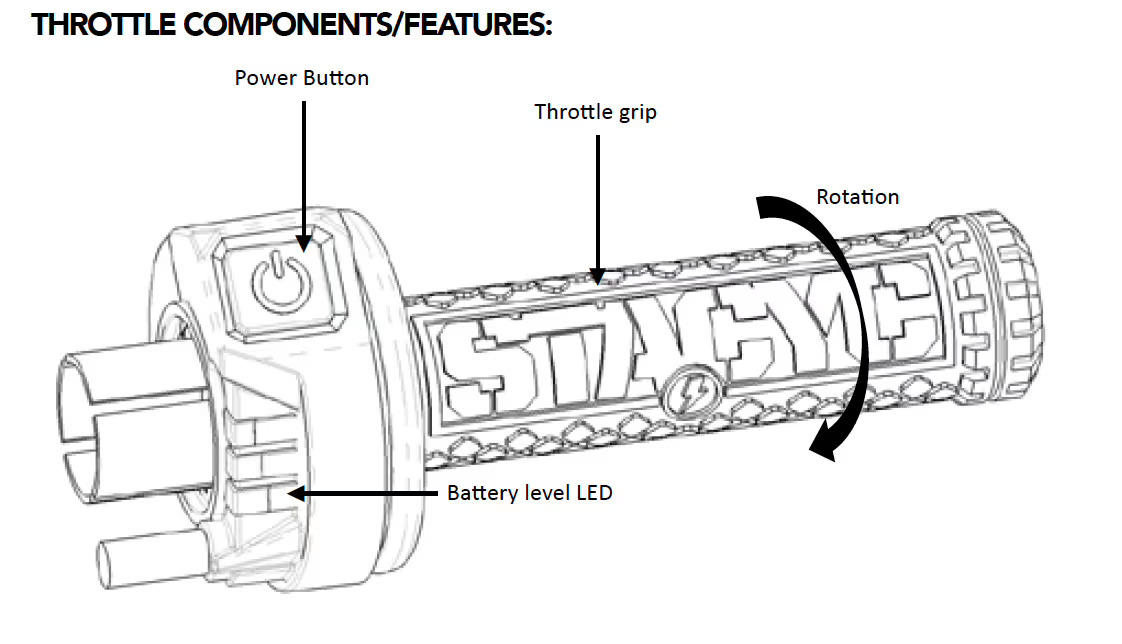

Throttle Components
